Hyundai Construction Offers Complete Versatility In Compact Excavators

The ability to maneuver safely and efficiently in cramped working conditions can make your excavation jobs go faster. And that boosts profitability. But you can’t get the job done without adequate power to dig and move material. The new line of compact radius excavators from Hyundai Construction has you covered, with models that assure state-of-the-art performance in even the tightest spaces.

These earthmoving machines are easy to operate and proficient in every way. They’re compact yet very agile, with plenty of bucket breakout force to tackle tough jobs. All Hyundai Construction compact excavators are available with your choice of rubber or steel tracks.

There’s a size just right for your jobs.

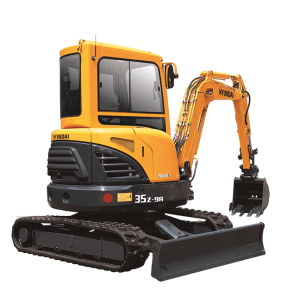

The R35Z-9 zero tail swing model is compact and nimble, especially useful for urban locations and sensitive landscaped areas. It weighs 8050 pounds and features:

• Tier 4i certified Yanmar 3TNV88, water-cooled, four-cycle engine.
• 2.1 foot tail swing radius.
• 7.2 foot digging depth.
• 7050 lbf bucket digging force.

Mid-size models are designed to confidently handle virtually any project where you need power and maneuverability in a confined area, such as utility work, landscaping and light construction. They’re a great choice for installing or repairing small pipe and for demolishing asphalt driveways and concrete walkways or curbing. These three Hyundai Construction compact excavators are outfitted with the Yanmar 4TNV98 diesel engine, which is also Tier 4i certified.

The R55CR-9 weighs 12,460 pounds and provides 12.5 foot digging depth and 8490 lbf bucket breakout force. The R60CR-9 weighs 13,010 pounds and has a 3.7 foot tail swing radius, 10.5 foot digging depth and 9190 lbf bucket digging force. And the R80CR-9 weighs 18,410 pounds, with a 4.2 foot tail swing radius, 12.5 foot digging depth and 12,570 lbf bucket digging force.

Every model is packed with powerful features.

• Rugged upper and lower frames provide exceptional strength and structural integrity to absorb impact stress. You get longer service life even under the toughest working conditions.
• The latest innovative engine technology gives you reliable power, yet it’s fuel-efficient and quieter.
• The advanced hydraulic system is precision-designed for fast operation with finely-tuned control.
• Operators can be more productive, working comfortably no matter what the working environment is like, with conveniently-located, ergonomically-designed joystick controls and large foot pedals that support easier operation. There’s a monitoring system with warning indicators, important gauges and an hour meter. And a safety lever on the left-side console prevents exiting the cabin while hydraulic controls are active.
• The cabin is roomy and ergonomically arranged. It’s quieter and provides excellent visibility, and the canopy and cabin style frames meet TOPS, ROPS and FOPS international safety standards. Operators will appreciate the large-capacity air conditioning, improved ventilation, MP3/AM/FM radio, water- and dust-proofing seals, fully adjustable suspension seat and armrests, foldable pedals for added space, multiple storage compartments.

Maintenance is simple and easy.

All Hyundai Construction 9-series mini-excavators feature numerous details designed to prolong life while reducing the need for regular maintenance, including:

• Polymer shims that resist wear and reduce noise.
• More efficient cooling and pre-heating systems.
• 250-hour lube interval.
• 1000-hour hydraulic filters.
• 5000-hour hydraulic oil.

Larger models have an integrated air cleaner, centralized grease fittings and wide-opening doors, covers and hoods for even greater convenience. And of course all these machines carry Hyundai’s industry-leading total coverage warranty – three-year, 3000-hour full machine warranty plus five-year, 10,000-hour structural warranty.

If your workload calls for excavation projects in limited spaces, these Hyundai Construction compact workhorses will help you get more done, faster, with lower operating costs and less down time.
